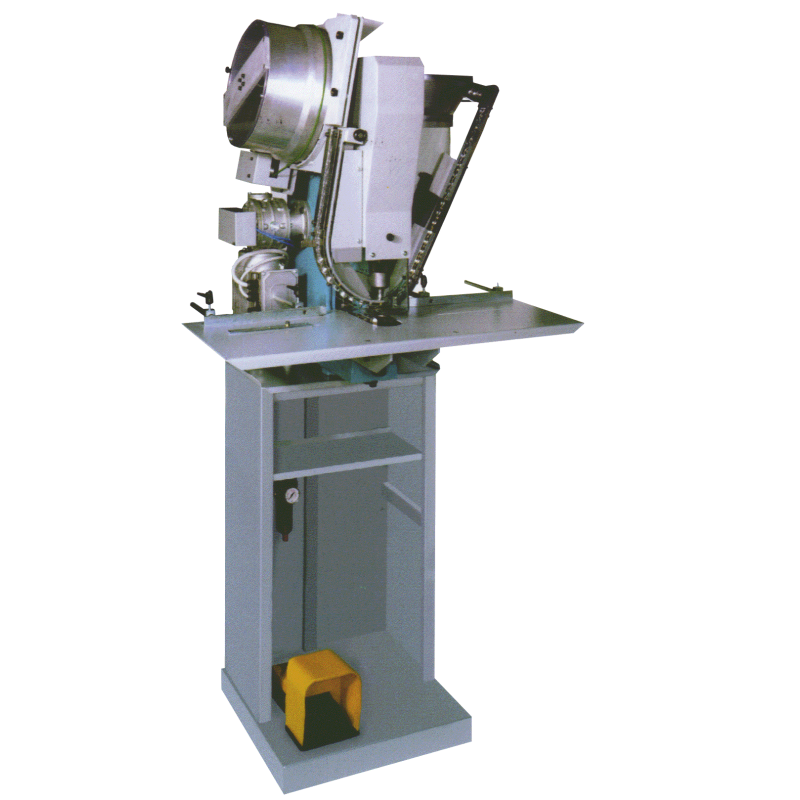

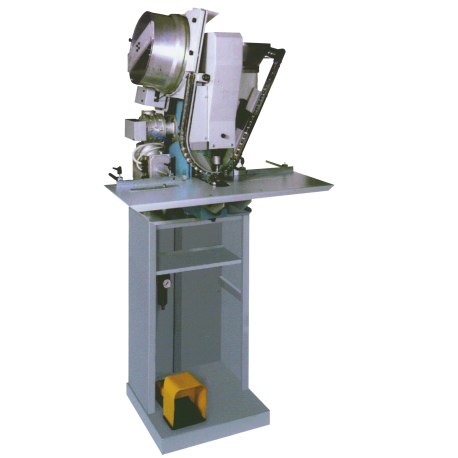

dMEDD n°10
EEE 010 0000
New product
Drilling : Ø 8,5 mm to 15,5 mm
For tarpaulin eyelets from No. 13 to No. 17
For grommets with teeth from No. 1 to No. 5
Data sheet
| Packaging | 1 |
| Weight (kg) | 175 |
| Consumption | 500W 380 V-3 |

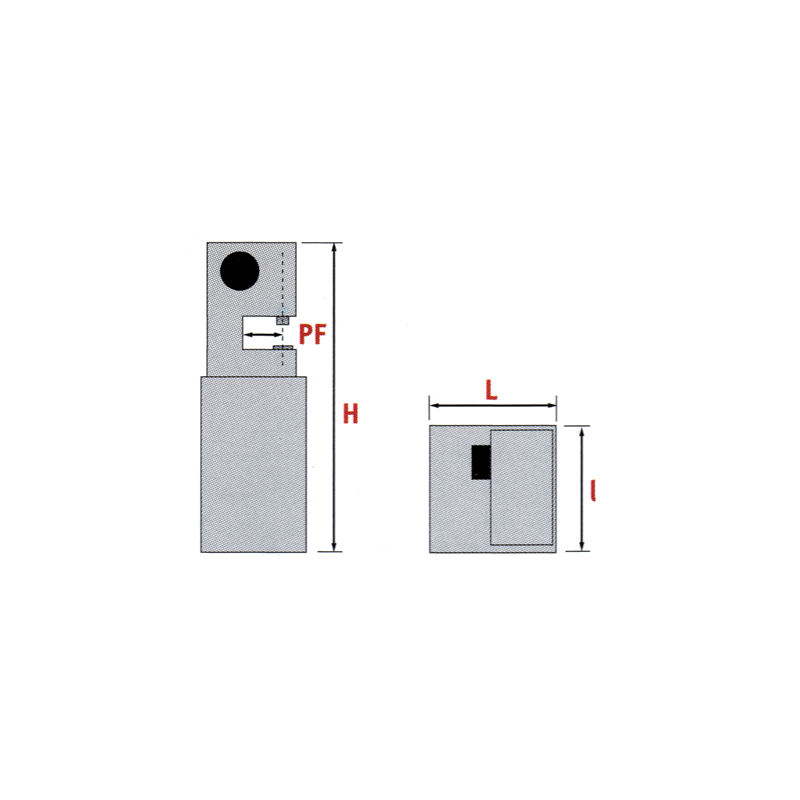

| Gooseneck depth (mm) | 100 |
| Lenght (mm) | 600 |
| Width (mm) | 700 |
| Hauteur | 1580 |
More info
Theoretical cadence up to 40 eyelets per minute. Eyelets and washers are supplied by distribution bowls.
Eyelets are supplied down by a rotating bowl and neck washers supplied down by a vibrating bowl. Drilling and crimping in one operation. A worktable allows the operator to lay down the tarpaulin. Possibility of adapting a base with 4 wheels to move the machine. Machine perfectly suited to increase your productivity.
